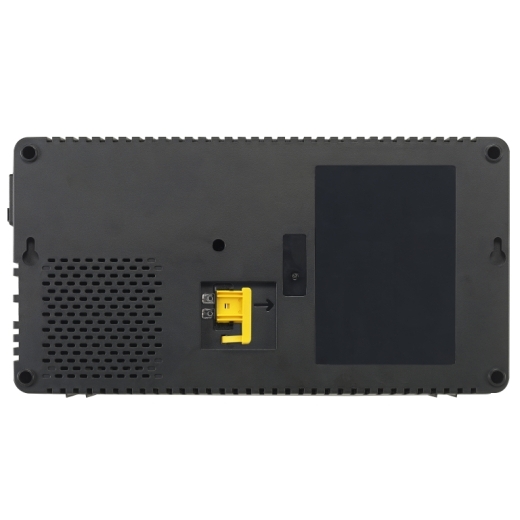

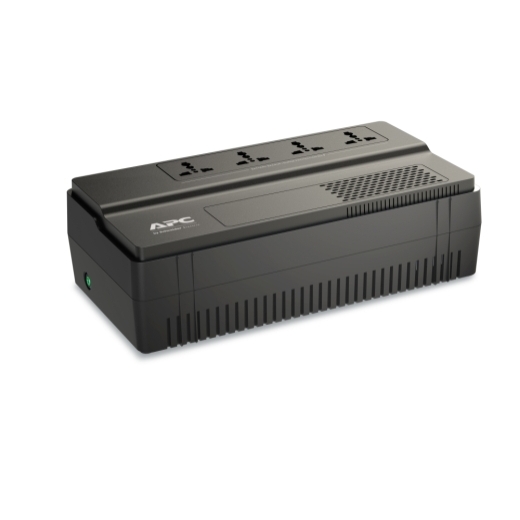

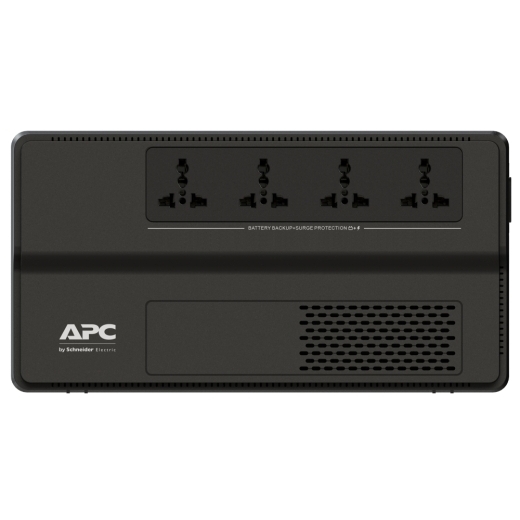

APC Back-UPS 650VA

In stock

Specs

Output

Max Configurable Power (Watts)

325 Watts / 650VA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

4 ms typical : 6 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

180 - 270V

Number of Power Cords

1

Type of Input Protection Required

GL fuse

Input Power Factor at Full Load

0.5

Batteries & Runtime

Battery type

Lead-acid battery

Included Battery Modules

1

Typical recharge time

4hour(s)

Replacement Battery

Expected Battery Life (years)

2 - 4

Battery Charge Power (Watts)

19 Watts

Communications & Management

Control panel

LED Status display with on line : on battery

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

160Joules

Physical

Maximum Height

141MM, 14.1CM

Maximum Width

101MM, 10.1CM

Maximum Depth

300MM, 30.0CM

Net Weight

4.33KG

Shipping weight

4.58KG

Shipping Height

223MM, 22.3CM

Shipping Width

143MM, 14.3CM

Shipping Depth

347MM, 34.7CM

Color

Black

Master Carton Dimensions (Length x Width x Height)

584 x 356 x 229MM

Master Carton Units

4.0

Master Carton Weight

18.5

Pallet Dimensions

47.24 x 39.37 x 44.88inches

# of Layers per Pallet

4.0

# of Units per Layer per Pallet

20.0

Pallet Weight

892.87lbs.

Units per Pallet

80.0

SCC Codes

10731304318184

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0 - 1999.79meters

Storage Temperature

-20 - 50 °C

Storage Elevation

0 - 14999.8meters

Audible noise at 1 meter from surface of unit

40.0dBA

Conformance

Equipment protection policy

No EPP for ASEAN

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant
